Pneumatic conveyor

Product data download

Drawing: Download

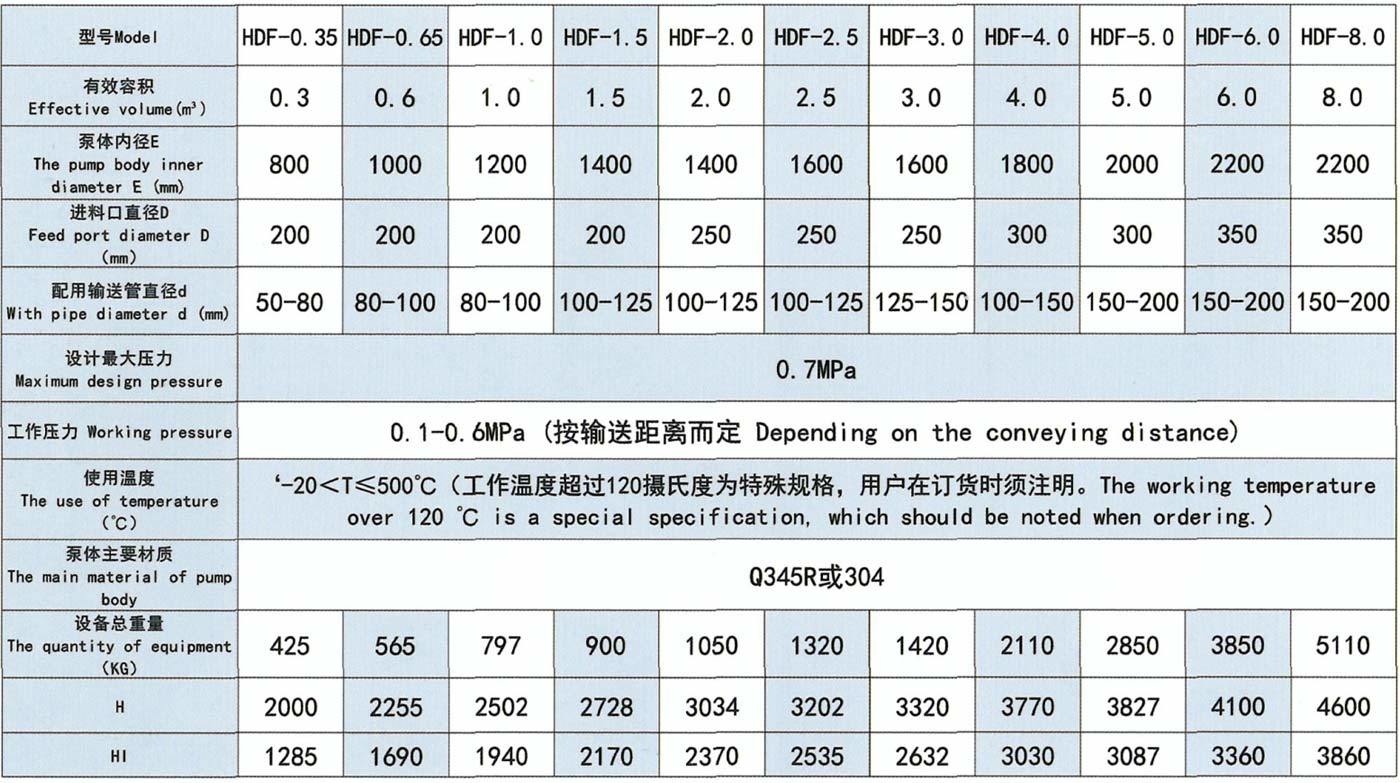

Technical data：

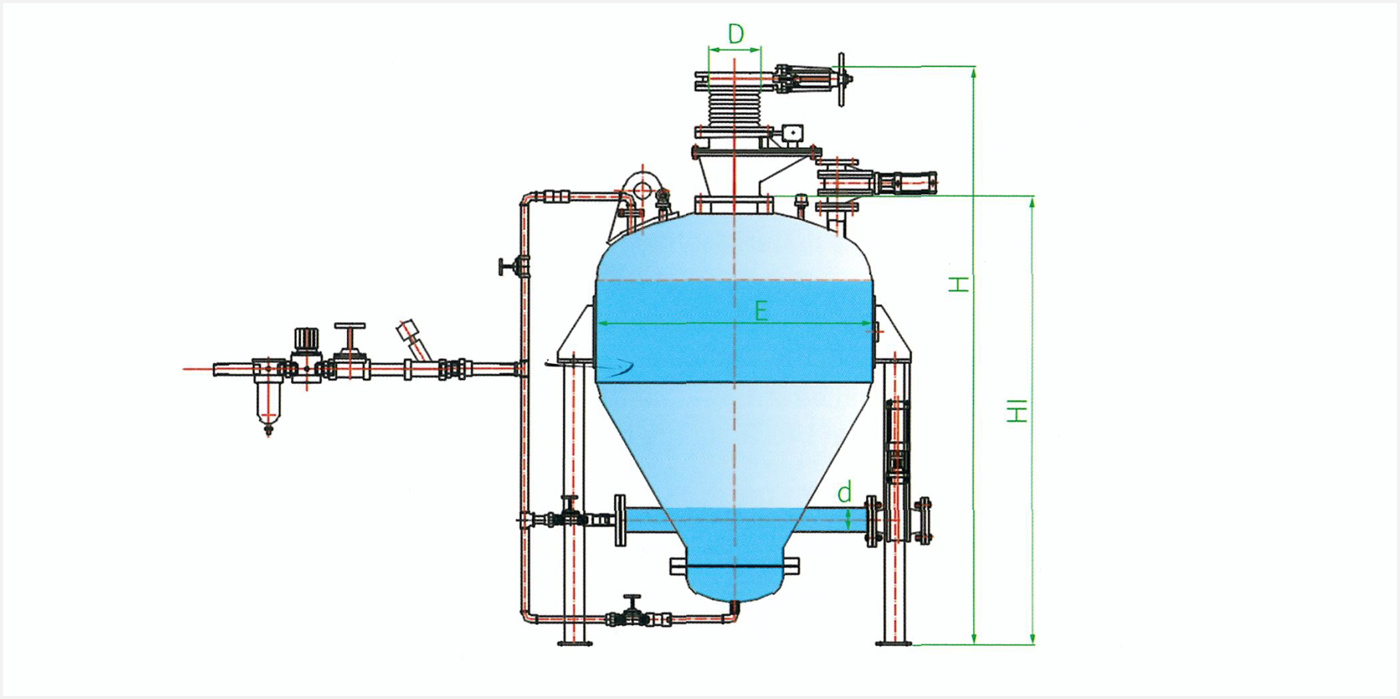

HDF type cone pump appearance chart:

Application：

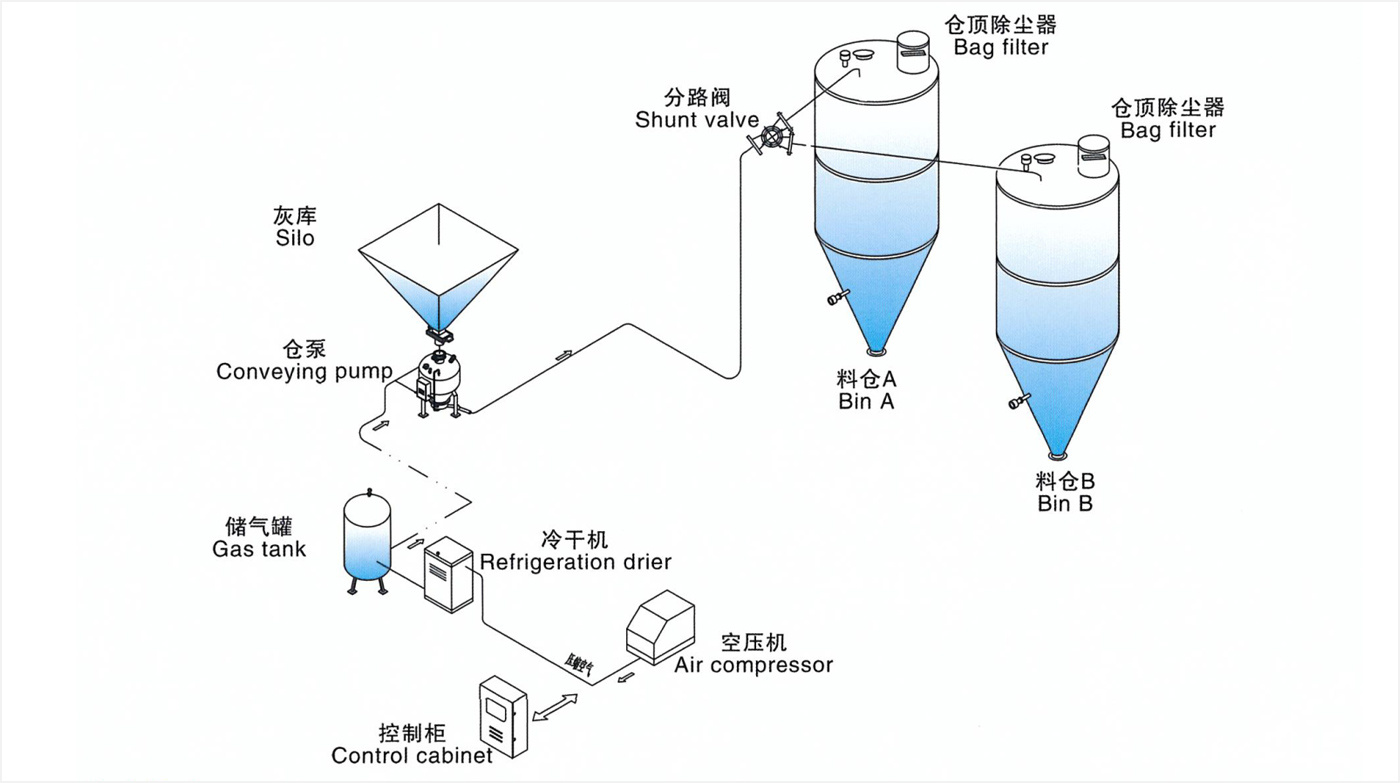

Dense phase pneumatic conveying system is specially suitable for long-distance sealed transportation of various dust; Adaptive conveying distance is equivalent to 50-500 meters, conveying materials: fly ash, lime powder, cement, aluminum powder, mineral powder, sawdust, straw, etc. Complete system configuration, complete PLC control of the entire system, fully automated operation, and convenient maintenance.

Q&A:

Q: Delivery Time
A: It depends on the model and quantity, we can arrange delivery within one week. Please confirm this with our sales before order.

Q: Delivery term
A: by sea, by air, or train are ok.

Q: MOQ
A: 1 set, we can accept 1 set roots blower order, no matter how many you want to buy, we can accept.

Q: payment term
A: T/T, L/C, cash, Ali pay, pay by we chat, etc.

Q: Package type
A: Customized wooden cases, we have partitions inside to ensure the package is strong enough for delivery.

Q: Warranty
A: 10 years since customer receiving the goods.

Q: Standard Accessories includes
A: For whole set roots blower, accessories includes: pump body, pneumatic gate valve, pressure transmitter, material level gauge, blowing valve group, pressurized valve group, fluidization valve group, local valve box etc.
If there's any needs for other accessories, please note it out before order.
We also could provide pump body only.

Q: Can be Customized
A: Yes of course, we can customize products according to your requirements,we also an OEM factory.
