Introduce

Working principle

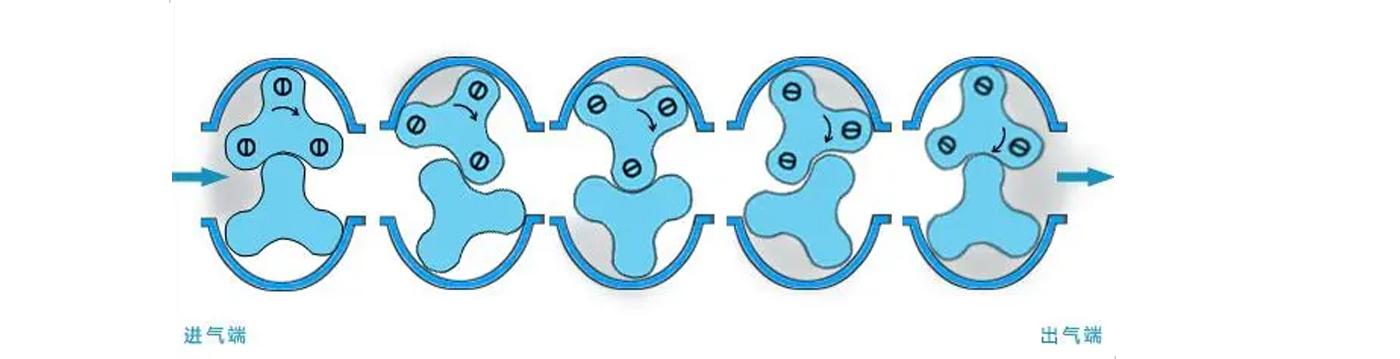

Roots blower is a volumetric and rotary blower. Air enters the blower through the inlet silencer, and the two impellers in the casing maintain a certain meshing clearance with each other. Through the synchronous gear belt action, the two impellers rotate in a constant speed reverse direction, pushing the intake air from the inlet to the outlet, overcoming the resistance of the high-pressure air at the outlet side, and forcibly discharging the unit through the pressure relief valve, elastic joint, outlet silencer, and one-way valve, achieving the purpose of conveying air.

Structure

Based on the introduction of American Roots blower technology, the YCSR blower (vacuum pump) is an updated product designed and developed by our company using its proprietary technology. Its structure and performance have been greatly improved and improved. It is a leading technology product in the world today and has the best cost performance ratio. Roots blower unit integrates inlet silencer(including air filter), outlet silencer, base, transmission device, elastic joint, pressure relief valve, pressure gauge, one-way valve, anchor bolt, and other Roots blower accessories, with compact structure, reasonable design, beautiful appearance, and convenient installation.

Feature

1. The impeller adopts an advanced structure with three blades, high area utilization coefficient, and good rigidity, ensuring high air pressure, large air capacity, and stable operation.

2.Main grinding gear is adopted, with high accuracy, long service life, and low noise

3.Roots blower is widely used in the fields of sewage treatment, aquaculture, dust removal as well as material transportation. Roots blower is more energy-saving and environmentally friendly.
