3 lobe wastewater treatment roots blower

Category:

Waster treatment blower

Type:3 lobe wastewater treatment roots blower
Pressure: 9.8kpa--98.8kpa
Air capacity: 0.65CBM--158CBM
Feature:Positive displacement & Structure reliable performance

INQUIRY

Product data download

Performance curve download: Download（low pressure ）& Download （high pressure ）

Drawing: Download

Technical data ：

DATASHEET
MODEL	Air capacity(m³/min)	Air pressure(Kpa）		Motor(Kw)	RPM	Dimension(mm)	Weight(kg)
YCSR50	0.65-2.75	9.8-58.8		0.75-5.5	1100-2300	880580560	72
YCSR50H	0.45-2.31	63.7-98		3-7.5	1100-2300	880580560	82
YCSR65	0.94-3.80	9.8-58.8		0.75-7.5	1100-2300	920630594	84
YCSR65H	0.78-3.09	63.7-98		3-11	1100-2300	920630594	98
YCSR80	2.34-6.13	9.8-58.8		2.2-11	1140-2100	1150720664	130
YCSR80H	1.82-5.26	63.7-98		5.5-15	1140-2100	1150720664	140
YCSR100	3.25-9.62	9.8-58.8		3--15	1060-2100	1250780764	156
YCSR100H	2.65-8.65	63.7-98		7.5-22	1060-2100	1250780764	170
YCSR125	5.35-17.57	9.8-58.8		3--30	980-1830	1450950800	226
YCSR125H	4.64-12.23	63.7-98		11--30	980-2000	1450950800	240
YCSR150	10.37-29.61	9.8-58.8		7.5--55	810-1900	1500720934	384
YCSR150H	9.53-28.35	63.7-98		22--75	810-1900	1500720934	400
YCSR175	19.65-38.67	9.8-58.8		11--55	970-1620	15007201084	480
YCSR200	19.65-59.20	9.8-58.8		15--90	740-1480	17509301220	670
YCSR200H	17.96-56.92	63.7-98		37--110	740-1480	17509301220	700
YCSR250	54.77-97.52	9.8-58.8		30--110	1100-1480	200010001220	850
YCSR250H	58-93.70		63.7-98	110--185	990-1480	200010001220	880
YCSR300	87.10-138.10	9.8-58.8		45--185	990-1480	210012001300	950

Application：

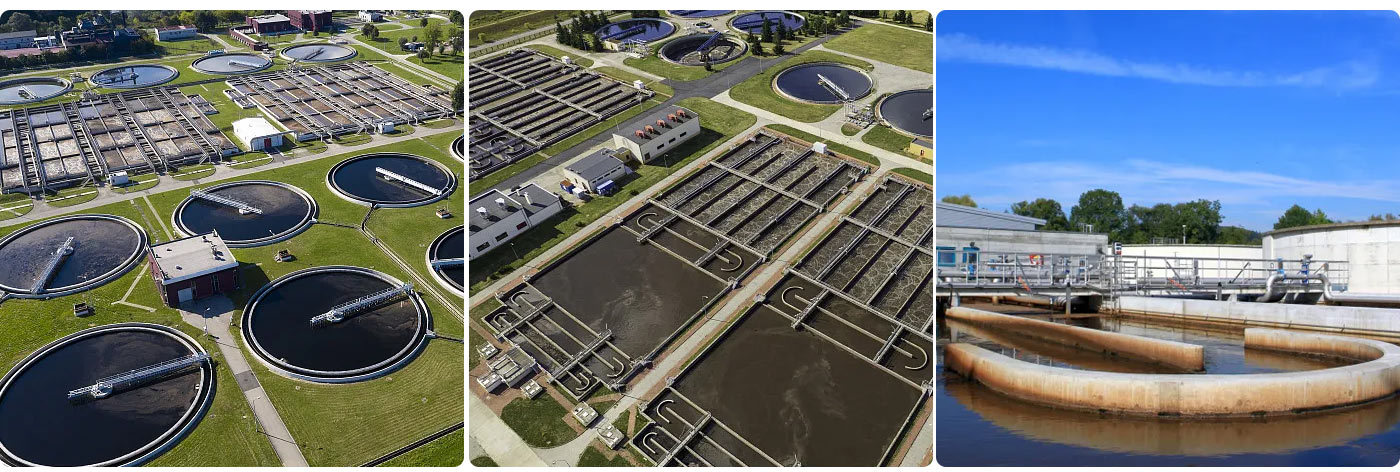

Widely used in electric power industry, petro-chemical, fertilizer, metallurgy, steel, oxygen producing, cement, textile, food, paper making, dust collecting, aquatic farming, sewage treatment, pneumatic conveying, gas transportation, coal mine, etc.

Q&A:

Q: Delivery Time
A: It depends on the model and quantity, we can arrange delivery within one week. Please confirm this with our sales before order.

Q: Delivery term
A: by sea, by air, or train are ok.

Q: MOQ
A: 1 set, we can accept 1 set roots blower order, no matter how many you want to buy, we can accept.

Q: payment term
A: T/T, L/C, cash, Ali pay, pay by we chat, etc.

Q: Package type
A: Customized wooden cases, we have partitions inside to ensure the package is strong enough for delivery.

Q: Warranty
A: 12 months since customer receiving the goods.

Q: Standard Accessories includes
A: For whole set roots blower, accessories includes: common base, inlet silencer, outlet silencer, check valve, pressure gauge, safety valve, flexible joint, v-belts, belt cover, pulleys, bolts & nuts, etc.
If there's any needs for other accessories, please note it out before order.
We also could provide bare shaft blower only.

Q: Can be Customized
A: Yes of course, we can customize products according to your requirements,we also an OEM factory.
