YCGM Side mounted rotary valve

Category:

Side set type Rotary valve

Type：YCGM Side mounted rotary valve
Capacity：1.8L/rev-80L/rev
Motor: 0.55kw--4.0kw
Bore: 125mm--450mm

INQUIRY

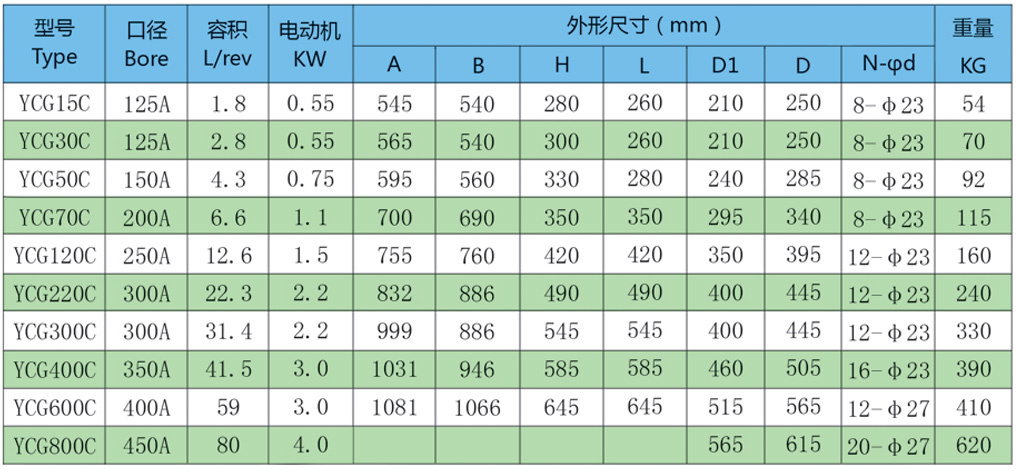

Technical data：

Feeder outline size drawing

Application：

Widely used in cereal,food,feed,chemical,pharmacy,dust collection,drying and transportation industry.
The discharge valve on working:
The discharge valve is generally installed at the bottom of the dust ash hopper. In order to ensure the connection of air leakage, it should often keep the height of the dust in the upper portion of the rotary discharge valve (storage). Because of the impeller rotates, the dust impeller turns on the two side often without dust

Q&A:

Q: Delivery Time
A: It depends on the model and quantity, we can arrange delivery within one week. Please confirm this with our sales before order.

Q: Delivery term
A: by sea, by air, or train are ok.

Q: MOQ
A: 1 set, we can accept 1 set roots blower order, no matter how many you want to buy, we can accept.

Q: payment term
A: T/T, L/C, cash, Ali pay, pay by we chat, etc.

Q: Package type
A: Customized wooden cases, we have partitions inside to ensure the package is strong enough for delivery.

Q: Warranty
A: 10 years since customer receiving the goods.

Q: Standard Accessories includes
A:  For whole set rotary valve, accessories includes: acceleration chamber, air extraction chamber, motor, machine head, chain cover, chain, manual slide valve, glass mirror, ripple compensator, pressure valve etc.
        If there's any needs for other accessories, please note it out before order.
        We also could provide machine head only.

Q: Can be Customized
A: Yes of course, we can customize products according to your requirements,we also an OEM factory.
